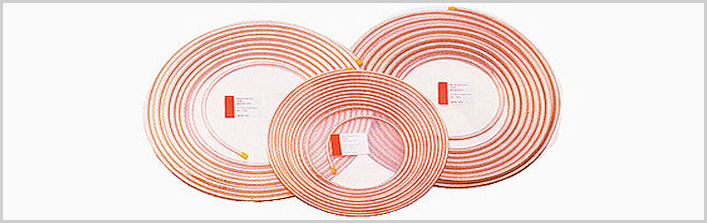

Application: Pancake coil is mainly used for air conditioning and refrigeration, installation of air conditioner, construction water and gas. Available in standard with lengths of 10ft, 20ft, 25ft, 50ft, 60ft, 66ft, 100ft, 3m, 6m, 7.62m, 15m, 18m, 30m, 50m.
Standard: ASTM B280, ASTM B88, ASTM B68, ASTM B75, ASTM B836 standard, EN 12735, EN 1057 standard, AS 1571, AS 1432 standard and JIS H3300 standard.
Temper: O60 or O50
Package: individually sealed by plastic bag, and packed by carton box of 3-20 rolls
| Product Code | Description |
| HTCA318 | Pancake Coil 1/8"x50', soft annealed |
| HTCA476 | Pancake Coil 3/16"x50', soft annealed |
| HTCA635 | Pancake Coil 1/4"x50', soft annealed |
| HTCA794 | Pancake Coil 5/16"x50', soft annealed |
| HTCA952 | Pancake Coil 3/8"x50', soft annealed |
| HTCA127 | Pancake Coil 1/2"x50', soft annealed |
| HTCA1588 | Pancake Coil 5/8"x50', soft annealed |
| HTCA1905 | Pancake Coil 3/4"x50', soft annealed |
| HTCA2223 | Pancake Coil 7/8"x50', soft annealed |
| copper alloy No. | chemical composition | temper | mechanical property | ||
| copper, % min, | Phosphorus % | tensile strength | Elongation % | ||
| C12200 | 99.90 | 0.015-0.040 | O60 | ≥ 205 | ≥ 40 |
| C12200 | 99.90 | 0.015-0.040 | O50 | ≥ 245 | - |
