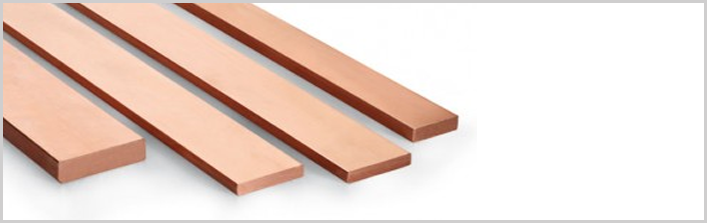

Electrical copper tubes with rectangular, squares shapes etc
Application: Electrical and conductive fields and general engineering fields
Temper: Hard, Soft
Specification: GB/T 1527-2006, EN1057, ASTM B75
Packing: warped with plastic bag then bundled with several pieces.
Product Code | Size | Description |
HTCI12-7 | 12X7 | RECTANGULAR TUBE 12x7mm |
HTCI20-12 | 20X12 | RECTANGULAR TUBE 20x12mm |
HTCI30-15 | 30X15 | RECTANGULAR 30x15mm |
HTCI70-20 | 70X20 | RECTANGULAR 70x20mm |
HTCI5-10 | 5X10 | SQUARE TUBE 5x10mm |
HTCI40-35 | 40X35 | SQUARE TUBE 40x35mm |
HTCI42-37 | 42X37 | SQUARE TUBE 42x37mm |
Copper Alloy No. | Chemical Composition | Temper | Mechanical Properties | ||||
Tensile strength (Mpa) | Elongation (%) | Grain Size (mm) | |||||
CU% | P% | ||||||
C12200 | ≥99.90 | 0.015-0.040 | H58 | 290 | / | / | |
C11000 C10100 C10200 | ≥99.90 | / | O60 | 235 | 48-50 | / | |
Stockist In Imported & Indian Copper Tubes & Fitting
