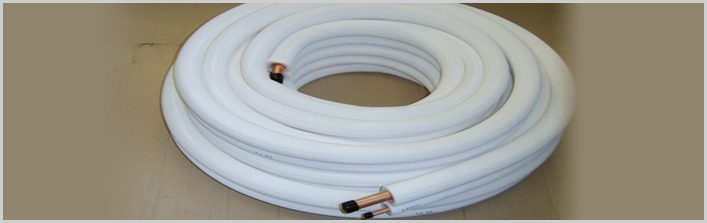

Application: The insulation is a double layered structure made of cross linked foam polyethylene with closed cells. The insulation tube is extruded to ensure close tube contact to enhance dew point proofing properties. The insulation is covered with embossed polyethylene film to prevent the foam creasing. The insulation tube is good for Anti-UV, heat resistance, low water absorption. Insulated copper tube is mainly used for Installation of Air Conditioner, available in standard with lengths of 3-30m.
Standard: ASTM B280 standard, AS 1571 standard and EN 12735 standard.
Temper: O60 or O50
Package: individually sealed by plastic bag, and packed by carton box of 1-2 rolls
| Product Code | Description |
| HTCE635-952 | Insulated Pair Coil 1/4"+ 3/8"x30m , soft annealed |
| HTCE635-127 | Insulated Pair Coil 1/4"+ 1/2" x30m , soft annealed |
| HTCE635-1588 | Insulated Pair Coil 1/4"+ 5/8" x30m soft annealed |
| HTCE952-127 | Insulated Pair Coil 3/8"+ 1/2" x30m , soft annealed |
| HTCE952-1588 | Insulated Pair Coil 3/8"+ 5/8" x30m , soft annealed |
| HTCE952-1905 | Insulated Pair Coil 3/8"+ 3/4" x30m , soft annealed |
| HTCE127-1905 | Insulated Pair Coil 1/2"+ 3/4" x30m , soft annealed |
| Product Code | Description |
| HTCE635 | Insulated Single Coil 1/4"x30m , soft annealed |
| HTCE952 | Insulated Single Coil 3/8"x30m , soft annealed |
| HTCE127 | Insulated Single Coil 1/2"x30m , soft annealed |
| HTCE1588 | Insulated Single Coil 5/8"x30m , soft annealed |
| HTCE1905 | Insulated Single Coil 3/4"x30m , soft annealed |
| copper alloy No. | chemical composition | temper | mechanical property | ||
| copper, % min, | Phosphorus % | tensile strength | Elongation % | ||
| C12200 | 99.90 | 0.015-0.040 | O60 | ≥ 205 | ≥ 40 |
| C12200 | 99.90 | 0.015-0.040 | O50 | ≥ 245 | - |
